Air Conditioner and Heater Plumbing for 2004 Dodge Ram 2500
No.

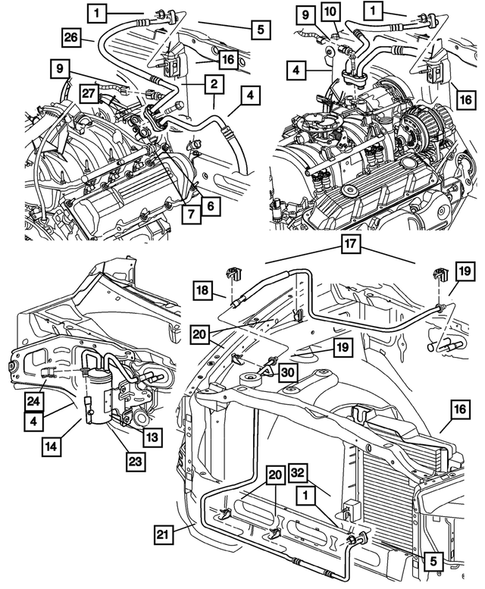

Part # / Description / Price
Price
N/A
A/c Line Valve Core
Mopar
Mopar Notes: Engines: 8.3L V10 SFI ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES. Engines - All 5.7L 8Cyl Gas. Engines - All 5.9L Turbo Diesels.
N/A
MSRP $23.55
$17.14
N/A
O Ring Mopar
Mopar Notes: Engines: 8.3L V10 SFI ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES. Engines - All 5.7L 8Cyl Gas. Engines - All 5.9L Turbo Diesels.
Description: Discharge line to Compressor
N/A
Seal Mopar
Mopar Notes: Engines: 8.3L V10 SFI ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES. Engines - All 5.7L 8Cyl Gas. Engines - All 5.9L Turbo Diesels.
Description: Liquid Line to Drier
N/A
O Ring Mopar
Mopar Notes: Engines: 8.3L V10 SFI ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES. Engines - All 5.7L 8Cyl Gas. Engines - All 5.9L Turbo Diesels.
Description: Discharge line to Compressor
N/A
A/c Pressure Transducer Valve Mopar
Mopar Notes: Engines: 8.3L V10 SFI ENGINE. Engines - All 5.9L Turbo Diesels.
MSRP $84.70
$56.39
MSRP $84.70
$56.39
N/A
Seal Mopar
Mopar Notes: Engines: 8.3L V10 SFI ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES. Engines - All 5.7L 8Cyl Gas. Engines - All 5.9L Turbo Diesels.
Description: Liquid Line to Condenser
1
Hex Nut-coned Washer Nut And Washer Mopar
Mopar Notes: Engines: 5.7L V8 HEMI ENGINE. 8.3L V10 SFI ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES. Engines - All 5.7L 8Cyl Gas.
Description: M8 x 1.25. Liquid Line/Filter Drier to Shock Tower Mounting
MSRP $11.30
$8.44
MSRP $11.30
$8.44
8
A/c Pressure Transducer Valve Mopar
Mopar Description: Includes: O-Ring. Up To 06/28/2010
MSRP $175.00
$116.55
MSRP $175.00
$116.55
13
A/c Line Valve Core Mopar
Mopar Notes: Engines: 8.3L V10 SFI ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES. Engines - All 5.7L 8Cyl Gas.
Description: After 12-01-03, After 12-12-03
MSRP $31.95
$23.18
MSRP $31.95
$23.18
13
A/c Line Valve Core Mopar
Mopar Notes: Engines: 8.3L V10 SFI ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES. Engines - All 5.7L 8Cyl Gas.
Description: After 12-01-03, After 12-12-03
15
A/c Condenser Mopar
Mopar Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab
MSRP $515.00
$335.72
MSRP $515.00
$335.72
18
A/c Liquid Line O Ring Mopar
Mopar Notes: Engines: 8.3L V10 SFI ENGINE.
Description: Liquid Jumper to Rear Liquid Line
18
A/c Liquid Line O Ring Mopar
Mopar Notes: Engines: 8.3L V10 SFI ENGINE.
Description: Liquid Jumper to Rear Liquid Line
19
Wiring Clip Mopar
Mopar Notes: Engines: 8.0L V10 HO MPI ENGINE. 8.3L V10 SFI ENGINE. ALL 4.7L V8 ENGINES. ALL 8.0L V10 ENGINES. ALL V6 ENGINES. Engines - All 5.7L 8Cyl Gas. Engines - All 5.9L Turbo Diesels.
Description: Liquid Line Mounting
22
Suction And Discharge Line Accumulator Mopar
Mopar Description: Mounting bolts only serviced with accumulator
MSRP $137.00
$91.02
MSRP $137.00
$91.02
30
A/c Charge Valve Cap Mopar
Mopar Notes: Engines: 8.3L V10 SFI ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES. Engines - All 5.7L 8Cyl Gas. Engines - All 5.9L Turbo Diesels.
No.
Part # / Description / Price
Price
N/A
MSRP $68.30
$47.04
1
A/c Condenser Mopar
Mopar Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab. Magneti-Marelli Offered By MOPAR, See Note.
1
A/c Condenser Mopar
Mopar Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab
MSRP $515.00
$335.72
MSRP $515.00
$335.72
1
Air Conditioning Condenser Mopar
Mopar Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab
1
A/c Condenser Mopar
Mopar Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab
No.
Part # / Description / Price
Price

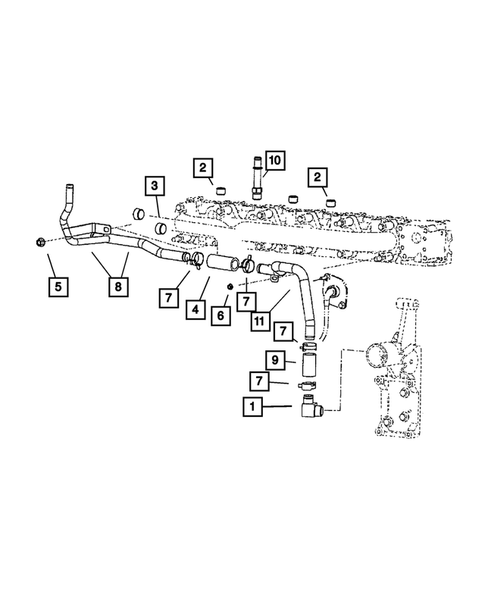

1
Elbow Hose Coupling Mopar
Mopar Notes: Engines: 5.9L I6 CUMMINS 24V DIESEL ENGINE. 5.9L I6 HO CUMMINS TD ENGINE.
Description: Heater Plumbing.
2
Pipe Plug Mopar
Mopar Notes: Engines: 5.9L I6 CUMMINS 24V DIESEL ENGINE. 5.9L I6 HO CUMMINS TD ENGINE.
Description: 1/2" NPT. Right Side Of Cylinder Head Behind Thermostat Housing And Right Rear
MSRP $13.00
$9.63
MSRP $13.00
$9.63
3
Pipe Plug Mopar
Mopar Notes: Engines: 5.9L I6 CUMMINS 24V DIESEL ENGINE. 5.9L I6 HO CUMMINS TD ENGINE.
Description: 3/4 NPT
MSRP $22.00
$16.35
MSRP $22.00
$16.35
5
Hex Flange Nut, Mounting Mopar
Mopar Notes: Engines: 5.9L I6 CUMMINS 24V DIESEL ENGINE. 5.9L I6 HO CUMMINS TD ENGINE.
Description: M10x1.50. Exhaust Manifold Heat Shield
MSRP $11.00
$8.38
MSRP $11.00
$8.38
6
Hex Flange Nut, Mounting Mopar
Mopar Notes: Engines: 5.9L I6 CUMMINS 24V DIESEL ENGINE. 5.9L I6 HO CUMMINS TD ENGINE.
Description: M6x1.00. Engine Oil Level Indicator Tube
MSRP $8.00
$6.71
MSRP $8.00
$6.71
8
Heater Core Tube Mopar
Mopar Notes: Engines: 5.9L I6 CUMMINS 24V DIESEL ENGINE. 5.9L I6 HO CUMMINS TD ENGINE.
8
Heater Core Tube Mopar
Mopar Notes: Engines: 5.9L I6 CUMMINS 24V DIESEL ENGINE. 5.9L I6 HO CUMMINS TD ENGINE.
8
Heater Core Tube Mopar
Mopar Notes: Engines: 5.9L I6 CUMMINS 24V DIESEL ENGINE. 5.9L I6 HO CUMMINS TD ENGINE.
8
Heater Core Tube Mopar
Mopar Notes: Engines: 5.9L I6 CUMMINS 24V DIESEL ENGINE. 5.9L I6 HO CUMMINS TD ENGINE.
MSRP $452.00
$295.90
MSRP $452.00
$295.90
9
Heater Core Tube Mopar
Mopar Notes: Engines: 5.9L I6 CUMMINS 24V DIESEL ENGINE. 5.9L I6 HO CUMMINS TD ENGINE.
MSRP $45.00
$31.22
MSRP $45.00
$31.22
10
Hose Coupling Mopar
Mopar Notes: Engines: 5.9L I6 CUMMINS 24V DIESEL ENGINE. 5.9L I6 HO CUMMINS TD ENGINE.
10
Hose Coupling Mopar
Mopar Notes: Engines: 5.9L I6 CUMMINS 24V DIESEL ENGINE. 5.9L I6 HO CUMMINS TD ENGINE.
MSRP $79.00
$54.51
MSRP $79.00
$54.51
11
Heater Core Tube Mopar
Mopar Notes: Engines: 5.9L I6 CUMMINS 24V DIESEL ENGINE. 5.9L I6 HO CUMMINS TD ENGINE.
MSRP $807.00
$523.20
MSRP $807.00
$523.20
No.
Part # / Description / Price
Price
No.
Part # / Description / Price
Price
3
MSRP $13.65
$10.19
